Total Mast Solutions Van

18.6m Telescopic, Pneumatic, Trailer Mast System

This is an ex demonstration, full set of equipment that is in excellent condition. It comes with a 1 year guarantee and many components are new. Its weight is approximately 155kg and tows well. It can be easily deployed by a single person in a few minutes and free user training is available with a certificate of competence if required, this would be done at out premises. The tow bar assembly is removable for security. It has full EU compliant lighting and a VIN number. The mast is 17 metres when extended but with a 1 metre extended and ground to mast clearance it reaches 18.6 metres or just over 60ft.

Mast details

  • Extended height with extended and ground clearance 18.6 metres
  • Retracted heght 2.8 metres
  • Head load capacity 8kg – this can be increased if you don’t extend the mast to full height
  • At 11 metres extended – 25kg head load
  • At 13 metres extended – 18kg head load
  • At 15 metres extended – 12kg head load

Please see below a brief list of equipment included

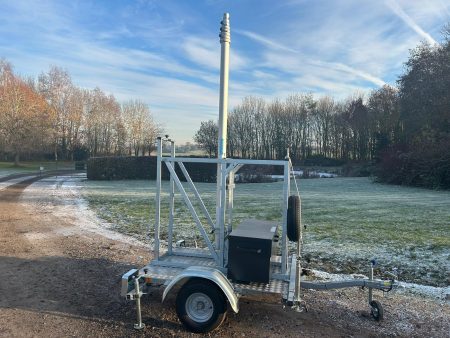

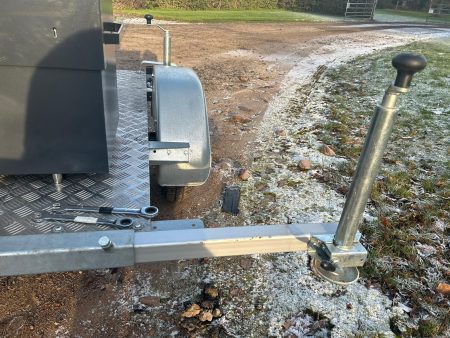

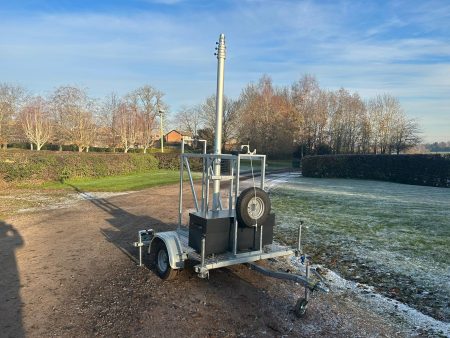

  • 1 x TMS T1 Trailer – wide body version – 1 year old
  • Bed width – 1.340 metres
  • Overall width – 1.8 metres
  • Bed length – 1.7 metres
  • Overall length – 2.950 metres
  • Overall height when mast is stowed 1.980 metres

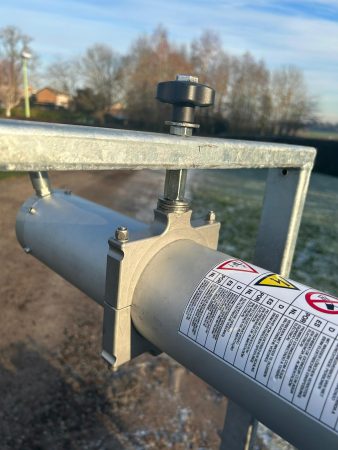

  • 1 x Galvanised pivoting mast deployment frame – New
  • 4 x Extendable outriggers with manual jacks and guying points
  • 1 x Full anti slip aluminum decking and onboard steel lockable box

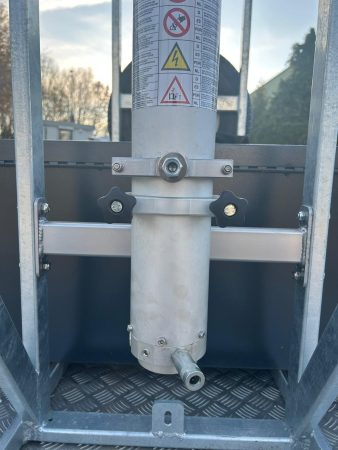

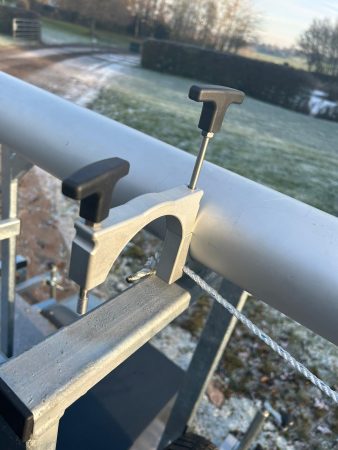

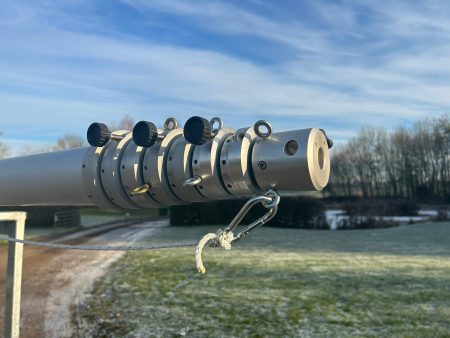

  • 1 x CM58-12 Telescopic mast system, all tubes clampable, fully anodized, air intake and air outtake valve, integral hand pump, fully rebuilt, new air seals and tested
  • 1 x 12V, 160ltr/min air compressor with air parts and battery – New
  • 1 x Mast head safety retainer and mast head cover – New
  • 1 x Quick release 1 metre mast extender – New
  • 1 x Cable retaining cleats – New
  • 1 x Lubricant set – New
  • 1 x Spirit level – New
  • 1 x Full set of guy ropes with tensioners – New
  • 6 x Angular ground stakes – New
  • 6 x Weight bags – New

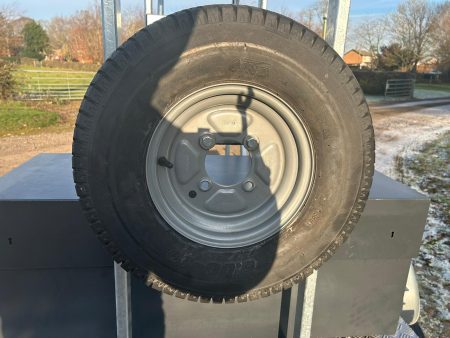

  • 1 x Spare wheel – New



Price: £5,650.00



Contact To Buy Now
