We have an extensive range of masts suitable for mounting lights. Our lighting masts have been in service with many of the world’s military, fire, police, and government organisations for many years and have a proven record of performance for quality and reliability.
We supply a number of precision Tilt and Turn devices and accompanying Lamps. Our lamp units come in a range of voltages and are supplied complete with bulbs, protection grids and fixed or quick-release mounting brackets for attaching them to the masts. We can provide many types of pan and tilt devices which can separately rotate and tilt multiple lights. Our masts can carry an impressive head load weight of over 500kg, with some models requiring no guying assembly as they are self-supporting.
Portable Lighting Masts
We have a range of versatile, lightweight, tripod-mounted lighting solutions simple and very quick to deploy by a single person. Our portable masts range is commonly used for temporary lighting applications and a number of models can be supplied with internal spiralled cables. All of our masts carry the CE mark of quality assurance along with all other certifications generally required by procurement personnel.
Our telescopic floodlights offers flexible sports lighting…
Our telescopic floodlights for sports fields, courts and pitches provide the perfect solution for sports illumination especially when planning consent for fixed columns has been refused due to visual pollution issues. Many sports facilities have been built in heavily populated residential areas where neighbours often object to unsightly fixed columns as they by their nature are always visible. Telescopic floodlight masts are commonly used to overcome this and planning departments favour them and will often grant permission. Our masts can be automatically retracted to as low as I .8 meters or 1 meter. In some situations customers prefer up to 4-5 meters retracted to keep the lamps away from possible vandalism. We can provide strong steel mast protection base tube covers and anti-climb spike clamps and lamps can also be lowered into lamp protection boxes to stop vandalism. The telescopic masts can be centrally controlled remotely from a clubhouse or strong steel lockable control box. Each sports lighting mast can be raised or lowered individually or all masts simultaneously. Internal spiralled cables are available to power the lamps and the entire mast can be rotated either manually or motorised. This can be useful for illuminating alternative areas when required. Pan, tilt and zoom video cameras can also be combined with our floodlighting masts and these can be used for sports analysis or for security purposes.
What else can we do
The floodlighting masts we provide for this application do not require any form of guys even with very heavy head loads such as multiple metal halide lamps (usually with ballast at the mast base). We can fabricate fixed or quick release lighting brackets to your requirements. We can also arrange full design and installation at your facility by our own expert operatives to give you the full turnkey solution.
Sports Pitch Lighting
Our masts are the perfect solution for sports lighting and they are commonly used for football, rugby, tennis, hockey and athletics along with multi use facilities. There are a number of advantages for using telescopic masts against fixed columns such as:
- Safe and easy access for maintaining and cleaning the lights/lamps.
- Extremely robust masts with huge head load capacity – over 900 types available.
- Far less visual impact as the lights can be retracted when not in use.
- Much preferred by planning authorities and residential communities due to decreased visual impact.
- Very easy to install and maintain
- Some masts do not require any form of planning permission as it can be designated as a temporary structure.
- Anti-climb and anti-vandalism measures can be fitted to all masts.
- More versatility in terms of location and extended and retracted height.
- Quick extension/retraction. For example, a 15m mast would take approximately one and a half minutes to extend.
- Increased pitch use time and increased revenue flow for the club.
- Reduced light pollution
- Manual or motorised 360° mast rotation enables you to choose the area to be illuminated, useful for side by side pitches.
Mega Mast Range
We have now released the new Mega Mast range that incorporates positive locking collars to lock the sections together for extended periods of time. These range from 115mm up to 340mm diameter allowing for more than 180 height configurations ranging between 3 to 40m. Each collar incorporates two positive locking mechanisms to lock the telescopic sections together while in the extended position without the need to maintain air pressure. This is beneficial for applications that require a telescopic mast to be deployed for long periods such as in the communications, military and construction industry. The Mega Masts can be laterally supported with guy ropes, increasing the stability of the mast. Internally coiled cable, turnable bases and pneumatic accessories are available. Added wiper seals (Sand Scraper Rings) can also be supplied to help prevent ingress of dirt and grit whilst the mast is deployed in harsh conditions.
New 340MMØ Mast Range
We have also released the 340mm diameter mast which is a large step up in strength from the 250mm diameter masts which will allow for larger loads to be raised such as heavy communications equipment. These masts have positive locking collars which prevent the mast tubes from slipping down with heavy loads or guying forces over time. The mast collars are also available with Sand Scraper Rings for applications in harsh environments. As with all our pneumatic masts tubes are constructed from aluminium and anodised silver to protect from abrasion and corrosion.
We are currently working on mast charts, please contact us for further information.

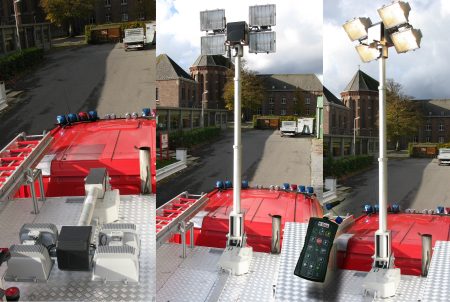

Automatic telescopic vehicle mounted lighting mast
Fireco automatic roof mast
Our version has the added function of motorised lights that will, with the aid of a remote control handset allow the user to concentrate the illumination onto a specific area. The remote control handset is easy to use and can pivot the mast to the vertical position, extend the mast to the required height and fully control the 8 lamps. It can be wired into the vehicle power supply and is very robust. It has an internal compressor and will easily fit to a suitable roof rack or directly to the roof of a vehicle. This type of system is in constant use throughout the world with fire services and so it has a proven track record for quality and reliability.
Images 4 & 5 show push up masts
Recommended masts for lighting
The manual roof mast is a very good solution when there is not much space inside the vehicle body, the mast can be easily mounted on the vehicle roof and can be 90° tilted, manually or electrically.
- Will easily fit a suitable roof rack or directly to the roof of a vehicle
- In constant use throughout the world with fire services
- A proven track record for quality and reliability
- Extended height of 2.510 metres
- Retracted height of 1.380 metres
- Illumination 8 x 50 watt LED
- Power 12 or 24V
All our keyed masts are built by our expert craftsmen using the best quality materials. The tube wall thickness ranges from 3.5mm minimum to 6mm. This gives maximum strength and durability. They are fully anodised for protection even against the harshest of elements.
Each mast is constructed from 2mm anodised aluminium, which is very robust yet more lightweight than steel.
The winch up mast range are extremely strong and can be used in harsh environments, they operate perfectly in freezing temperatures, dusty environments and sandy conditions.
- Hiperpod Fully Extended Mast
- Robust aluminium construction
- Extended height up to 7.3m
- Retracted height 1.6m
- Product weight 7.5kg
- Max. head-load 3.5kg
- Base tube diameter 45mm
- Tube wall thickness 1mm
- Air-cushioned for a smooth safe retraction
- Fully adjustable legs
Formed from strong powder coated aluminium, the box contains a roller mechanism which allows forward and backward level adjustment of the mast when parked on uneven ground, and the tow hitch winder assembly enables side to side level adjustment, giving the operator full control of the masts position and stability.
Total Mast Solutions offer a wide range of remote controls for telescopic masts: from the simplest solution to the most complex. Here’s a short overview, please contact us in order to get more information and special requirements. The mast with the multifunctional remote
control is supplied with an electronic board and an electrovalves group.
